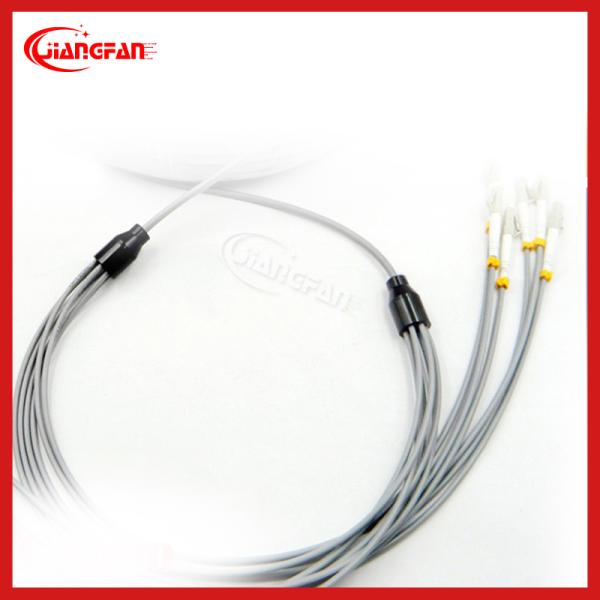

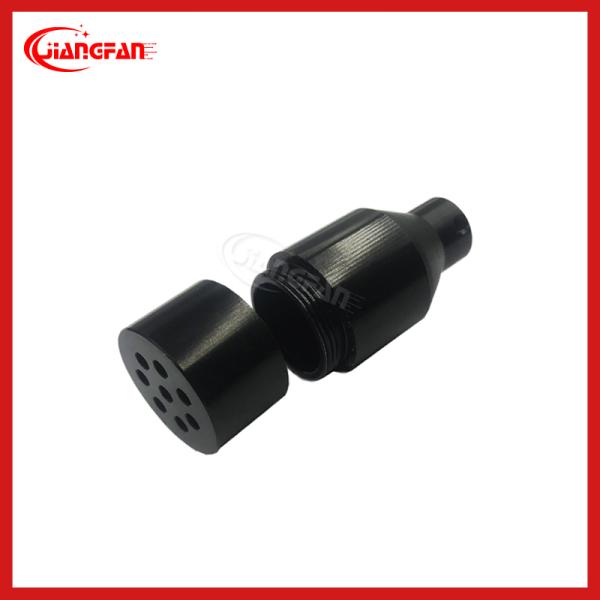

FZQ-02 Optical cable Bundle splitter
fiber optic fan out kit ,FZQ-02,2/4/6/8/12core bundle splitter,core dia 0.9-3.0mm,POM black,stainless steel,outdoor cab
Material available:stainless steel/aluminum alloy/copper/iron/POM
Surface treatment:anodizing,electroplating,spray molding,passivation,laser laser LOGO
Color:conventional color is blank,sliver white,customizable in any other color.It is suitable for all round indoorcables,outdoor cables,waterproof cables,armored cables,photoelecric composite cables and FTTH cables.
Accessories:heat shrinkable tube,glue,protective sleeve,fixing ring,screw,spanner.
Application:
- Bunch cable branch
- Armored fiber optic cable branch
- Field optical cable branch
- Various optical/cable branch solutions
Features:
- Material non-metal black
- POM material
- High temperature resistant to ROHS
- Fast and easy fixing
Product structure dimension drawing:
FZQ-02 Specifications:
| Number | Product number | φOD x L | ID 2 core | cable dia | product material |
| 1 | FZQ-02-01 | 12*26 | 2core2.0 | 3-7mm | Steel/Aluminum/Copper/Plastic |
| 2 | FZQ-02-02 | 15*.35 | 2core3.0 | 3-7mm | Steel/Aluminum/Copper/Plastic |
| 3 | FZQ-02-03 | 15*.35 | 4core3.0 | 3-7mm | Steel/Aluminum/Copper/Plastic |
| 4 | FZQ-02-04 | 15*.35 | 4core3.0 | 3-7mm | Steel/Aluminum/Copper/Plastic |
| 5 | FZQ-02-05 | 17*39 | 6core3.0 | 3-10mm | Steel/Aluminum/Copper/Plastic |
| 6 | FZQ-02-06 | 17*39 | 8core3.0 | 3-10mm | Steel/Aluminum/Copper/Plastic |
| 7 | FZQ-02-07 | 18*40 | 12core3.0 | 3-12mm | Steel/Aluminum/Copper/Plastic |
| 8 | FZQ-02-08 | 26*55 | 24core3.0 | 3-12mm | Steel/Aluminum/Copper/Plastic |
FZQ-02 product ordering information:
| Core No. OD2 | Core Dia OD2 | OD Cable Dia | OD1 Product Dia | L Product Lenths | material |
| 1 | 2core | 1 | 0.9mm | 1 | 3.0mm | 1 | 10mm | 1 | 20mm | 1 | POM |
| 2 | 4core | 2 | 1.6mm | 2 | 5.0mm | 2 | 12mm | 2 | 35mm | 2 | Aluminum alloy |
| 3 | 6core | 3 | 2.0mm | 3 | 7.0mm | 3 | 14mm | 3 | 43mm | 3 | copper |
| 4 | 8core | 4 | 3.0mm | 4 | Other | 4 | 18mm | 4 | 50mm | 4 | Stainless steel |
| 5 | 12core | 5 | Other | | | 5 | Other | 5 | Other | 5 | Other |
| 6 | 24core | | | | | | | | | | |
| 7 | Other | | | | | | | | | | |
Flat cable spliter
Other products of our company(Protective sleeve)

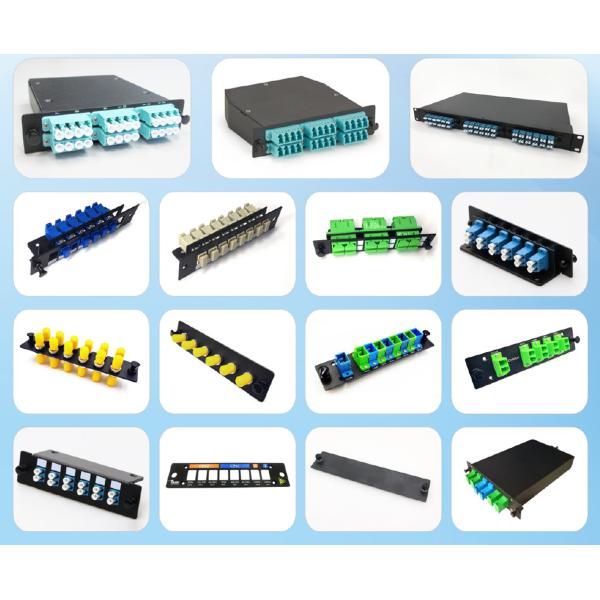

Card Chassis Accessories
