Outdoor Aerial Duct Armored Fiber Optic Cable GYTS GYTA53 Underground

Product Categories
Shenzhen Jiangfan Communication Equipment Co., Ltd.
Contact Now

Outdoor Aerial Duct Armored Fiber Optic Cable GYTS GYTA53 Underground

Brand Name : GAPHO

Model Number : GYAT53

Place of Origin : China

MOQ : 50

Packaging Details : 100/PCS

Payment Terms : T/T

Delivery Time : 7-10 day

Fiber type : G.652D

Cladding diameter : 125.0±1

Cladding non-circularity : ≤1.0

Coating diameter : 245±5

Cable cut-off wavelength : ≤1260

Tension（Long Term） : 1000

Tension（Short Term） : 3000

Crush（Long Term） : 1000

Min. Bend Radius（Dynamic） : 20D

Installation Temperature : -40～+60

Operating Temperature : -40～+70

Storage Temperature : -40～+70

Contact Now

Overview

Quick Details:
Modrel Number:networking cable Type:Outdoor Fiber Optical Cable
Place of Origin:Shenzhen Brand Name:GAPHO
OEM:Available Application:direct buried/tube/duct
outdoor fibra optica cable aerial duct direct method GYTS GYTA GYTA53 armored fiber optic cable Outdoor Underground
Model name:networking cable
Packaging &Deliver:
Packaging Details:wooden durms or customized
Facotry Price GYTA53 Armoured Double Jacket 8 12 24 48 144 Core Rodent Resistant Cable Optic Fiber
Product Description:

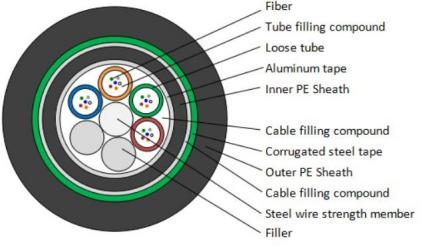

GYTA53 (Loose tube stranding, Metal strengthmember, Flooding jelly compound, Aluminum-polyethylene adhesive inner
sheath,Steel-polyethylene adhesive outer sheath)
Applications:These corrugated steel tape and aluminum tape armored and double sheath cables are suitable for installation in harsh environments where mechanical impact on the cable is to be expected.e.g. in direct buried application. They are also suitable for installation in ducts where the rodent resistance is to be expected or the moisture resistance is expected.
Specification:

Item Parameters
Fiber Count 12/48

Colored coated fiber

 Dimension 250µm±15µm

Color

 Blue,Orange,Green,Brown,Gray,White,Red,Black,Yellow,Purple,Pink,Aqua

Loose tube

 Dimension 1.9mm±0.1mm
Material PBT
Color Blue,Orange,Green,Brown

Filler

 Material PE
Color Black

Central Strength Member

 Dimension 1.4mm±0.2mm
Material Phosphating steel wire

Armoured

Material

Plastic coated steel strip and

aluminum tape

Outer jacket

 Material PE
Color Black

Item Unit Specification
Fiber Type G.652D

Mode field diameter

 1310nm mm 9.2±0.4
1550nm mm 10.4±0.8
Cladding diameter mm 125.0±1
Cladding non-circularity % £1.0
Core/cladding concentricity error mm £0.5
Coating diameter mm 245±5
Coating non-Circularity % £6.0
Coating/cladding concentricity error mm £12.0
Cable cut-off wavelength nm £1260

Attenuation Coefficient

 1310nm dB/km £0.36
1550nm dB/km £0.22
Proof stress level kpsi ≥100

Mechanical and Environmental Characteristics:

Item Unit Specifications
Tension(Long Term) N 1000
Tension(Short Term) N 3000
Crush(Long Term) N/10cm 1000
Crush(Short Term) N/10cm 3000
Min. Bend Radius(Dynamic) mm 20D
Min.Bend Radius(Static) mm 10D
Installation Temperature ℃ -40～+60
Operating Temperature ℃ -40～+70
Storage Temperature ℃ -40～+70

Repeating bending

Load:250N;number of cycles:30 No obvious addition

attenuation, no fiber break and no cable damage.

Torsion

Load:250N; number of cycles:10; twist angle:±90° No obvious

addition attenuation, no fiber break and no cable damage.

Impact

Impact energy:450g×1m; radius of hammer head:12.5mm;

number of impact: 5 No obvious addition attenuation, no fiber

Dimensions of Cable Constructions

Fiber count

Structure

Fibers per tube

Loose tube diameter (mm)

CSM

diameter/pad diameter (mm)

Nominal Thickness of outer jacket

(mm)

Cable diameter/ Height (mm)

Cable weight (kg/km)
4 1+5 4 1.8±0.1 1.4/1.4 1.6 12.0±0.2 145
6 1+5 6 1.9±0.1 1.4/1.4 1.6 12.0±0.2 145
8 1+5 8 1.9±0.1 1.4/1.4 1.6 12.0±0.2 145
12 1+5 6 1.9±0.1 1.4/1.4 1.6 12.0±0.2 145
24 1+5 6 1.9±0.1 1.4/1.4 1.6 12.0±0.2 145
36 1+6 12 1.9±0.1 1.6/1.6 1.6 13.2±0.2 155
48 1+5 12 2.2±0.1 1.6/1.6 1.6 13.2±0.2 155
60 1+5 12 2.2±0.1 1.61.6 1.6 13.2±0.2 160
72 1+6 12 2.2±0.1 2.0/2.0 1.6 13.2±0.2 180
96 1+8 12 2.2±0.1 1.6/3.5 1.6 15.4±0.2 220
144 1+12 12 2.2±0.1 1.8/6.4 1.6 18.5±0.3 270

Drum:

Cable type

 Drum

Height (mm)

Width (mm)

Inner diameter

(mm)

Length

(km)

Drum type
GYTA53-(4-30) 1000 720 400 2 wood drum
GYTA53-(36-60) 1000 720 400 2 wood drum
GYTA53-72 1100 720 450 2 wood drum
GYTA53-96 1200 720 550 2 wood drum
GYTA53-144 140 800 700 2 wood drum

Outdoor Aerial Duct Armored Fiber Optic Cable GYTS GYTA53 Underground
Outdoor Aerial Duct Armored Fiber Optic Cable GYTS GYTA53 Underground
