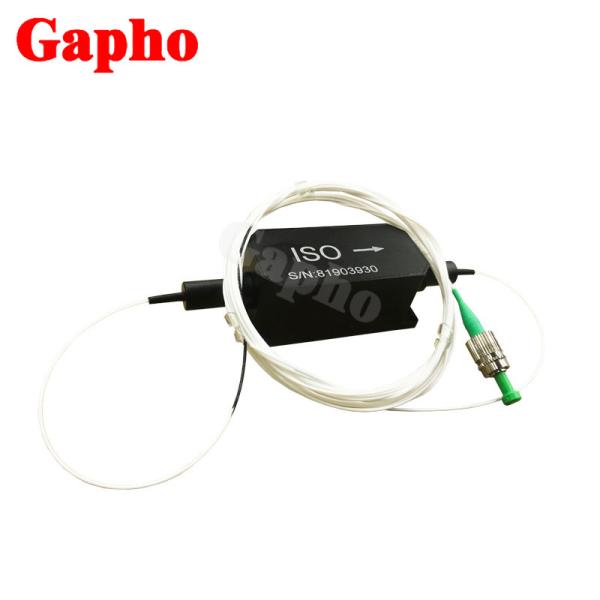

Optical 980nm Polarization Maintaining Isolator 900um Loose Tube For Fiber Amplifier

Name: Optical 980nm Polarization Maintaining Isolator 900um Loose Tube For Fiber Amplifier
Brand: GaPho
Price: 1 USD

Wholesale Optical 980nm Polarization Maintaining Isolator 900um Loose Tube For Fiber Amplifier from china suppliers

Brand Name : GaPho

Model Number : Fiber Optical Isolator

Place of Origin : China

MOQ : 10

Price : Negotiable

Payment Terms : T/T, D/A, D/P, T/T, L/C

Supply Ability : 20000/week

Delivery Time : 7-10 day

Packaging Details : Carton,pearl cotton,bubble bag,plastic bag

Center Wavelength : 980

Operating Wavelength Range : +5

Package Dimension : 58x28x26

Operating Temperature : +10-+50

Storage Temperature : 0-+60

Min. Extinction Ratio at 23°C, only for PM : 20

Max. Average Optical Power : 20 or Specified

Max. Peak Power for ns Pulse : 10 or Specified

Contact Now

980nm-Polarization-Maintaining-Optical-Isolator.do...980nm Polarization Maintaining Optical Isolator 900 um loose tube for PM Fiber Amplifier

Optical Isolator utilizes Faraday effect of Magneto optical crystal. It guides optical light in one direction and eliminates back reflection and back scattering in the reverse direction at any polarization sate.The unique manufacturing process and optical path epoxy-free design enhance the device's high power handling capability. The devices are characterized with high performance, high reliability and low cost. It has been widely used in EDFAs, Raman amplifiers, DWDM systems, Fiber lasers, transmitters and other fiber optic communication equipments to suppress back reflection and back scattering.

Features

Low Insertion Loss
High Return Loss
High Isolation
High stability & Reliability

Application

PM Fiber Amplifier
Testing Instrument
Mopa Fiber Laser
Fiber Laser

Specification

Parameters	Unit	Value
Center Wavelength	nm	980
Operating Wavelength Range	nm	+5
Typ. Peak Isolation at 23°C	dB	30
Min. Isolation at 23°C	dB	25
Typ. Insertion Loss at 23°C	dB	0.8
Max. Insertion Loss at 23°C	dB	1.0
Min. Extinction Ratio at 23°C, only for PM	dB	20
Min. Return Loss(lnput/Output)	dB	45
Max. Average Optical Power	W	20 or Specified
Max. Peak Power for ns Pulse	kW	10 or Specified
Max. Tensile Load	N	5
Package Dimension	mm	58x28x26
Operating Temperature	°C	+10-+50
Storage Temperature	°C	0-+60

Package Dimensions:

Optical 980nm Polarization Maintaining Isolator 900um Loose Tube For Fiber Amplifier

Ordering Information

-Center Wavelength:	1064=1064nm, 1030=1030nm, 0980=980nm, 0850=850nm, 0780=780nm
-Core Type:	S=Single-Core
-Axis Alignment for PM:	F=Slow axis working, Fast axis blocked, B=Both of axis working
-Fiber Type:	001=PM1550, 002=PM1310, 003=PM980, 004=Hi1060, 008=SMF-28E
-Package Dimension:	0=58x28x26mm, S=Specified
-Pigtail Type:	0=250pm bare fiber, 1=900pm loose tube
-Fiber Length:	0=0.8m,1=1m
-Connector Type:	0=FC/UPC,1=FC/APC,2=SC/UPC,3=SC/APC,4=LC/UPC,5=LC/APC, N=None
-Average Power:	00=500mW, 01=1W, 02=2W,. , 05=5W, 10=10W
-Peak Power:	10=10kW, 20=20kW

Optical 980nm Polarization Maintaining Isolator 900um Loose Tube For Fiber Amplifier
